America NEMA 5-15P AC Power Cords 15 Amp 125V
- Plug type: America 3 prong grounded plug
- Standard:NEMA 5-15P
- Approvals:UL, cUL
- Electricity:15A, 125V
- Number of Poles and Wires:2 pole 3 wires
- Cable length:1.0 meter, 1.5m, 1.8m,custom length
- End Options:ROJ, Termination
- Color:White and black are normal,Custom color
- Outer Mold Material:PVC,Rubber
- Plug Insert Material:PBT,ABS
- Blade Material:Nickel coated Brass
- Cable Specifications:Standard and custom made
- Wire Outject Material:PVC,Rubber,TPE,Textile
- Environmental Certifications:RoHS, REACH, PAHS

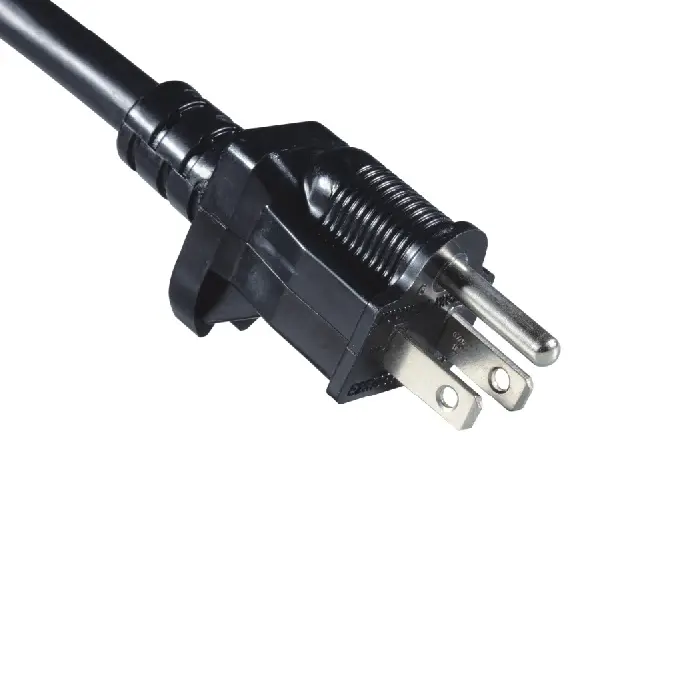

NEMA 5-15P straight grounded AC power cord
A NEMA 5-15P straight grounded AC power cord is a common type of power cable used in North America. It has a straight plug with three prongs: two flat blades for hot and neutral conductors and a round grounding pin. The cable is typically made of PVC or rubber for flexibility and durability. It comes in various lengths to suit different needs.
Function
- The main function of this cable is to transmit electricity from a power outlet to a device.
- The grounding pin helps to protect users from electrical shock by providing a path for stray current to flow to the ground.
Applications
- This type of power cord is commonly used with devices that require grounding, such as computers, refrigerators, washing machines, and power tools.
- It can also be used with some devices that do not require grounding, such as lamps and TVs, but it is always safer to use the correct type of cord for your device.
