Offset Right Angle Plug Power Supply Cord NEMA 5-15P UL Listed
- Plug type: Offset right angle plug
- Standard: NEMA 5-15P
- Approvals: UL, cUL
- Electricity:15A, 125V
- Number of Poles and Wires:2 poles 3 wires
- Cable length:1.0 meter, 1.5m, 1.8m,custom length
- End Options: ROJ, Termination
- Color: White and black are normal, Custom color
- Outer Mold Material: PVC, Rubber
- Plug Insert Material: PBT, ABS
- Blade Material: Nickel Coated Brass
- Cable Specifications: Standard and custom made
- Wire Jacket Material: PVC, Rubber, TPE, Textile
- Environmental Certifications: RoHS, REACH, PAHS

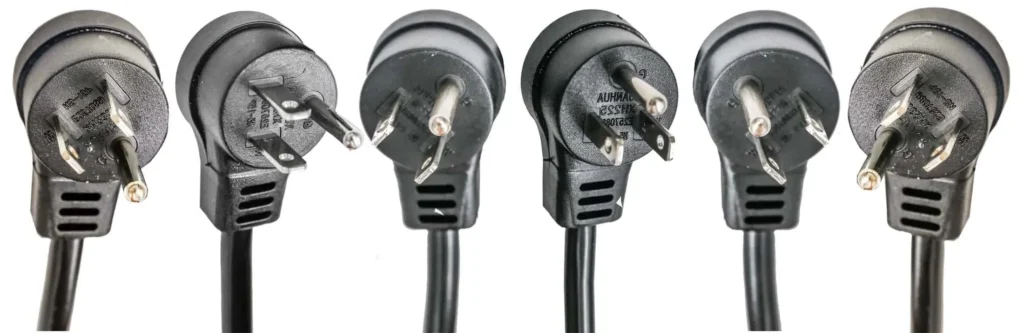

Offset right angle power cords
Offset right angle power cords are a type of power cord that has a plug that exits the cable at a 90-degree angle, but with the pins offset at a specific angle (45, 135, 180, 225, 315, or 0/360 degrees) to prevent adjacent plugs from blocking each other. They are designed to save space and provide a more organized appearance, especially when dealing with multiple cords plugged into a power strip or outlet.
benefits of using offset right angle power cords
- They save space: By having the plug exit the cable at a 90-degree angle, offset right angle power cords can help to free up space around outlets and power strips. This can be especially helpful in tight spaces, such as behind desks or in home theater setups.
- They provide a more organized appearance: The offset pins on these cords help to prevent them from blocking each other, which can create a neater and more organized look.
- They can reduce strain on the cord: By reducing the amount of bending that the cord needs to do, offset right angle power cords can help to extend the life of the cord and prevent it from breaking.
However, there are also a few things to keep in mind when using offset right angle power cords
- They may not be available for all plug types: Not all plug types are available in offset right angle versions. This product is 5-15p is available.
- They can be more expensive than standard power cords: Offset right angle power cords are typically more expensive than standard power cords.
- They may not be as easy to find: Offset right angle power cords may not be as readily available as standard power cords.
NEMA 5-15P Power Cord
The NEMA 5-15P, also known as the standard household plug or computer power cord, is a type of power cord commonly used in North America, Mexico, and some parts of Central and South America. It has a three-prong plug with two flat prongs for the hot and neutral wires and one round prong for the ground wire. It is a polarized plug, meaning that the two blades are different sizes so that the plug can only be inserted into an outlet one way. The larger blade is the neutral blade, and the smaller blade is the hot blade. The round pin is the grounding pin.
key features of a NEMA 5-15P power cord
- Plug type: NEMA 5-15P
- Voltage rating: 125 volts AC
- Amperage rating: 15 amps
- Wire gauge: Typically 14 AWG or 16 AWG
- Length: Available in various lengths, from a few feet to several dozen feet
- Applications: Commonly used for powering household appliances, electronics, computers, and other devices
