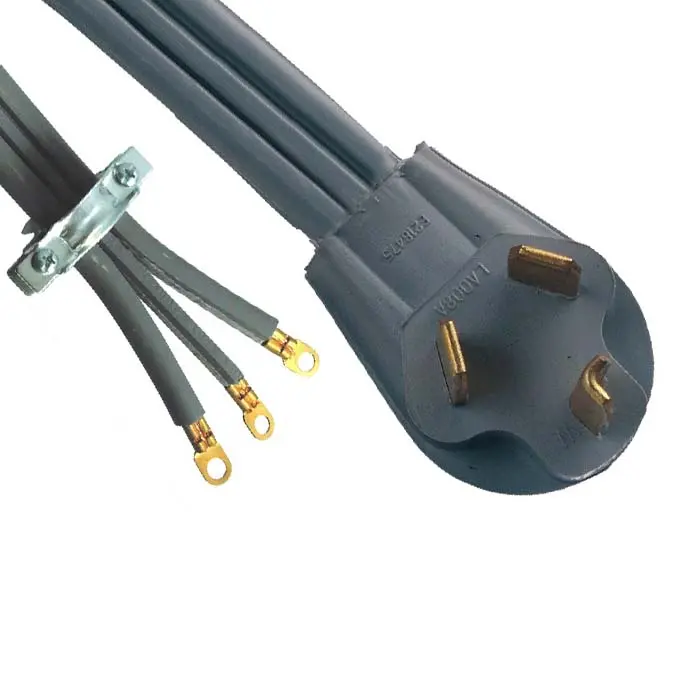

NEMA 10-30P Flat Power Cord
- Plug type: America 30A Straight blade dryer plug
- Standard:NEMA 10-30P
- Approvals:UL, cUL
- Electricity:30A, 125V, 250V
- Number of Poles and Wires:2 pole 3 wires
- Cable length:4Ft minimum 6Ft Maximum,custom length
- End Options:Strain relief clamp, terminals
- Color:grey is normal,Custom color available
- Outer Mold Material:PVC,Rubber
- Plug Insert Material:PBT,ABS
- Blade Material:Nickel coated Brass
- Cable Specifications:Standard and custom made
- Wire Outject Material:PVC,Rubber,TPE,Textile
- Environmental Certifications:RoHS, REACH, PAHS
The NEMA 10-30P is a three-prong plug and connector commonly used for high-powered appliances in residential and commercial settings.
Power Handling:
- 30 Amps, 125/250 Volts: It can handle appliances or equipment requiring significant power, such as:
- Electric dryers (older models)
- Electric ranges (older models)
- Air conditioners (window units)
- Heavy-duty power tools
- Some welding equipment
Design and Durability:
- Straight blade design: Unlike twist-lock plugs, it plugs directly into compatible outlets without a locking mechanism.
- 3-prong with ground: Ensures proper grounding for safety and equipment protection.
- Durable construction: Typically made with high-quality materials, but not as robust as industrial-grade plugs.
- Limited cable options: Usually available in shorter lengths due to its residential/commercial applications.
Important notes:
- Obsolete in some areas: Due to safety concerns, the NEMA 10-30P is increasingly being replaced by grounded plugs like NEMA 6-30P or 14-30P in new installations.
- Not recommended for new wiring: Always consult a qualified electrician to ensure you are using the safest and most suitable plug for your needs.
- Potential safety risk: The ungrounded design carries a higher risk of shock compared to grounded plugs. Use caution when using older appliances with this plug type.
Applications
- Existing residential and commercial installations with compatible outlets.
- Older electric dryers and ranges still in use.
- Temporary power setups in specific instances (depending on local regulations).
Alternatives
- For new installations or replacements, consider grounded plugs like NEMA 6-30P or 14-30P, offering improved safety and potentially higher power handling capacity.
